Regression Table

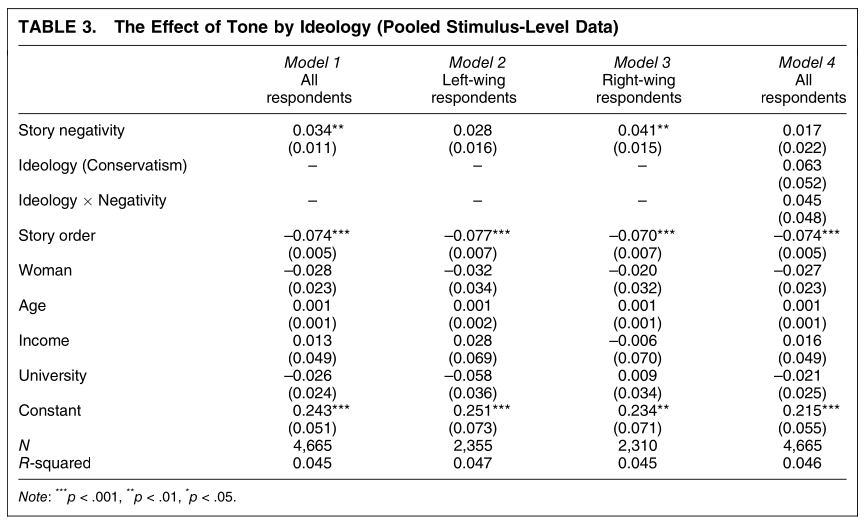

Motivating example

Regression tables with multiple models displayed in the table columns are common in academic publications, and they usually follow the same standard format. The table below is an example from Fournier, Soroka, and Nir (2020) showing the effect of negative and positive televised news reports and political ideology on people's emotional arousal and activation, captured by physiological galvanic skin activity. It is easy to produce this type of table with tidypolars, keeping everything in a tidy format.

Data

The synthetic data vote contains information about Democratic and Republican voters, including demographics and voting behavior:

import tidypolars4sci as tp
import tools4sci as t4
from tidypolars4sci.data import vote as df
import numpy as np
#
from statsmodels.formula.api import ols as lm
from statsmodels.formula.api import glm as glm
from statsmodels.api import families as family

# variables:
df.__codebook__.print()
shape: (9, 3)
┌──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┐
 Variable            Type    Description
 str                 str     str
╞══════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════╡
 age                 int     Age
 income              float   Income (standardized)
 gender              int     Gender (Male=0; Female=1)
 ideology            float   Ideology self-placement (left=-10 to right=10)
 treatment           int     Treatment group (treated=1; control=0)
 group               str     Group
 partisanship        str     Partisanship (Democrat or Republican)
 vote_conservative   int     Voted for the most conservative in-party candidate (Yes=1, No=0)
 rate_conservative   float   Voters rate of the most conservative in-party candidate (Dislike=low value; Like=high value)
└──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┘

Estimating

Here are the functions for the estimation, prediction, and summarizing:

def create_formula(outcome, adjusted):
    if adjusted:
        # Adjustments are hard-coded here but could have been provided
        # as arguments for the function instead.
        adjustments = "income + age + gender"
    else:
        adjustments = "1"
    formula = f"{outcome} ~ treatment * ideology + {adjustments}"
    return formula

def estimate(data, model, formula):
    # need to covert to pandas for statsmodels
    data = data.to_pandas()
    if model == 'Linear':
        res = lm(formula, data=data).fit()
    else:
        # logit  model with clustered std. errors by the variable 'group'
        res = glm(formula, data=data, family=family.Binomial()).fit(cov_type="cluster",
                                                                    cov_kwds={"groups": data["group"]})
    return res

def get_summary(fit):
    res = fit.summary2().tables[1].reset_index(drop=False, names='term')
    return tp.from_pandas(res)

def predict(fit, data, at):
    newdata = t4.simulate.newdata(data, at=at)
    pred = fit.get_prediction(newdata.to_pandas()).summary_frame(alpha=0.05)
    return newdata.bind_cols(tp.from_pandas(pred))

And here is how to run the estimation in tidypolars and produce a table with tidy results:

res = (df
       .nest('partisanship')
       .crossing(outcome = ['rate_conservative', "vote_conservative"],
                 adjusted = ['Yes', 'No'])
       .mutate(
           model = tp.case_when(tp.col("outcome").str.contains('rate'), 'Linear',
                                tp.col("outcome").str.contains('vote'), 'Logit'),
           formula = tp.map(['outcome', 'adjusted'], lambda row: create_formula(*row)))
       .mutate(
           fit     = tp.map(['data', 'model', 'formula'], lambda row: estimate(*row)),
           summ    = tp.map(["fit"], lambda fit: get_summary(*fit)),
           pred    = tp.map(["fit", "data"], lambda row: predict(*row,
                                                                 at={'treatment':[0, 1],
                                                                     'ideology':range(-10, 10)}))
       )
       )
res

# explanation:
# res = (df
#        .nest('partisanship')
#        # This expands the grouped data to estimate different models
#        # (LPM and Logit), each with and without adjustment
#        .crossing(outcome = ['rate_conservative', "vote_conservative"],
#                  adjusted = ['Yes', 'No'])
#        .mutate(
#            # this indicates with model will be estimated depending on
#            # the outcome variable
#            # rate_coservative: continuous => linear model
#            # vote_coservative: binary     => logit model
#            model = tp.case_when(tp.col("outcome").str.contains('rate'), 'Linear',
#                                 tp.col("outcome").str.contains('vote'), 'Logit'),
#            # this performs a row-wise operation, creating the regression
#            # formula depending on the outcome and if the estimation is
#            # adjusted (the * used in *row unpacks the columns for the function)
#            formula = tp.map(['outcome', 'adjusted'], lambda row: create_formula(*row)))
#        .mutate(
#            # fit the models
#            fit     = tp.map(['data', 'model', 'formula'], lambda row: estimate(*row)),
#            # create tidy summaries
#            summ    = tp.map(["fit"], lambda fit: get_summary(*fit)),
#            # create table with predicted values 'at' specified values
#            pred    = tp.map(["fit", "data"], lambda row: predict(*row,
#                                                                  at={'treatment':[0, 1],
#                                                                      'ideology':range(-10, 10)}))
#        )
#        )
shape: (8, 9)
┌────────────────────────────────────────────────────────────────────────────────┐
 parti   data     outco   adjus   model    formu   fit      summ     pred
 str      object   str      str      str      str      object   object   object
╞════════════════════════════════════════════════════════════════════════════════╡
 repub   shape   rate_   Yes      Linea   rate_   <stat   shape   shape
 repub   shape   rate_   No       Linea   rate_   <stat   shape   shape
 repub   shape   vote_   Yes      Logit    vote_   <stat   shape   shape

 democ   shape   rate_   No       Linea   rate_   <stat   shape   shape
 democ   shape   vote_   Yes      Logit    vote_   <stat   shape   shape
 democ   shape   vote_   No       Logit    vote_   <stat   shape   shape
└────────────────────────────────────────────────────────────────────────────────┘

Summarizing

Single model

Let us see statmmodel summary the results for a particular model:

pty = 'democrat'
model = 'Logit'
adjusted = 'Yes'
tab = (res
       .filter(tp.col("partisanship")==pty)
       .filter(tp.col("model")==model)
       .filter(tp.col("adjusted")==adjusted)
       .pull('fit')
       )

# result of the first model estimated
tab[0].summary()
                 Generalized Linear Model Regression Results
==============================================================================
Dep. Variable:      vote_conservative   No. Observations:                 1017
Model:                            GLM   Df Residuals:                     1010
Model Family:                Binomial   Df Model:                            6
Link Function:                  Logit   Scale:                          1.0000
Method:                          IRLS   Log-Likelihood:                -512.79
Date:                Sun, 23 Feb 2025   Deviance:                       1025.6
Time:                        19:06:58   Pearson chi2:                 1.02e+03
No. Iterations:                     5   Pseudo R-squ. (CS):             0.2843
Covariance Type:              cluster
======================================================================================
                         coef    std err          z      P>|z|      [0.025      0.975]
--------------------------------------------------------------------------------------
Intercept             -0.1600      0.159     -1.008      0.314      -0.471       0.151
treatment             -0.4336      0.092     -4.724      0.000      -0.613      -0.254
ideology              -0.0805      0.031     -2.562      0.010      -0.142      -0.019
treatment:ideology    -0.2886      0.043     -6.765      0.000      -0.372      -0.205
income                -0.0467      0.064     -0.731      0.465      -0.172       0.079
age                    0.0200      0.005      3.972      0.000       0.010       0.030
gender                -0.1203      0.124     -0.967      0.333      -0.364       0.123
======================================================================================

Here is the tidy summary:

shape: (7, 7)
┌─────────────────────────────────────────────────────────────────────────┐
 term                 Coef.   Std.Err.       z   P>|z|   [0.025   0.975]
 str                    f64        f64     f64     f64      f64      f64
╞═════════════════════════════════════════════════════════════════════════╡
 Intercept            -0.16       0.16   -1.01    0.31    -0.47     0.15
 treatment            -0.43       0.09   -4.72    0.00    -0.61    -0.25
 ideology             -0.08       0.03   -2.56    0.01    -0.14    -0.02
 treatment:ideology   -0.29       0.04   -6.76    0.00    -0.37    -0.20
 income               -0.05       0.06   -0.73    0.46    -0.17     0.08
 age                   0.02       0.01    3.97    0.00     0.01     0.03
 gender               -0.12       0.12   -0.97    0.33    -0.36     0.12
└─────────────────────────────────────────────────────────────────────────┘

Multiple models

To create a regression table with different models displayed in the columns, formatted for publication, we can use the function models2tab() from the model tools4sci. One of the outcomes will be a tibble with the models (tab), the other a string with the latex table (tabl). The function uses a dictionary with the estimated models. The keys are the column names. Line breaks with \n can be used.

# select the models that will show in the table
mods = res.filter(tp.col("partisanship")=='democrat')

# prepare the dictionary (keys will be column names)
mods = {f"Model {m}\nAdjusted: {a}" : fit
        for m, a, fit in zip(mods.pull('model'),
                             mods.pull('adjusted'),
                             mods.pull('fit'))
        }
mods

# from the tools4sci module
tab, tabl = t4.report.models2tab(mods,
                                 latex=True,
                                 # we can rename covariates
                                 covar_labels={"income": "Income (std)"},
                                 kws_latex={'caption': "Example table",
                                            'label': "tab-example",
                                            'header':None,
                                            'align':"lcccc",
                                            'escape':True,
                                            'longtable':False,
                                            'rotate':False
                                            },
                                 sanitize='partial'
                                 )

# here is the tidy table (one can save it in xlsx, or csv)
tab.print()
shape: (20, 5)
┌────────────────────────────────────────────────────────────────────────────────────┐
                        Model Linear    Model Linear   Model Logit     Model Logit
 str                    Adjusted: Yes   Adjusted: No   Adjusted: Yes   Adjusted: No
                        str             str            str             str
╞════════════════════════════════════════════════════════════════════════════════════╡
 Intercept              -0.1194         -0.1194        -0.1600         -0.1600
                        (0.1030)        (0.1030)       (0.1588)        (0.1588)
 treatment              -0.5137***      -0.5137***     -0.4336***      -0.4336***
                        (0.0609)        (0.0609)       (0.0918)        (0.0918)
 ideology               -0.1021***      -0.1021***     -0.0805*        -0.0805*
                        (0.0074)        (0.0074)       (0.0314)        (0.0314)
 treatment x ideology   -0.2804***      -0.2804***     -0.2886***      -0.2886***
                        (0.0104)        (0.0104)       (0.0427)        (0.0427)
 Income (std)           0.0348          0.0348         -0.0467         -0.0467
                        (0.0307)        (0.0307)       (0.0639)        (0.0639)
 age                    0.0234***       0.0234***      0.0200***       0.0200***
                        (0.0020)        (0.0020)       (0.0050)        (0.0050)
 gender                 -0.5098***      -0.5098***     -0.1203         -0.1203
                        (0.0610)        (0.0610)       (0.1244)        (0.1244)
 N. Obs.                1017            1017           1017            1017
 R2 (adj)               0.7641          0.7641
 R2 (pseudo)                                           0.2843          0.2843
 BIC                    2859.2311       2859.2311      -5968.2760      -5968.2760
 AIC                    2824.7588       2824.7588      1039.5825       1039.5825
 Std. Error             Classical       Classical      Clustered       Clustered
└────────────────────────────────────────────────────────────────────────────────────┘

And here is the latex version (note the footnote with p-values; it can be changed using the parameter footnote of the function t4.report.models2tab() of the tools4sci module):

\begin{table}[!htb]
\caption{Example table}
\label{tab-example}
\centering
\resizebox{\ifdim\width>\linewidth\linewidth\else\width\fi}{!}{
\begin{tabular}{lcccc}
\toprule
  & \makecell{Model Linear\\Adjusted: Yes} & \makecell{Model Linear\\Adjusted: No} & \makecell{Model Logit\\Adjusted: Yes} & \makecell{Model Logit\\Adjusted: No}\\
\midrule
Intercept  &  -0.1194   &  -0.1194   &  -0.1600   &  -0.1600  \\
  &  (0.1030)  &  (0.1030)  &  (0.1588)  &  (0.1588) \\
treatment  &  -0.5137***  &  -0.5137***  &  -0.4336***  &  -0.4336*** \\
  &  (0.0609)  &  (0.0609)  &  (0.0918)  &  (0.0918) \\
ideology  &  -0.1021***  &  -0.1021***  &  -0.0805*  &  -0.0805* \\
  &  (0.0074)  &  (0.0074)  &  (0.0314)  &  (0.0314) \\
treatment x ideology  &  -0.2804***  &  -0.2804***  &  -0.2886***  &  -0.2886*** \\
  &  (0.0104)  &  (0.0104)  &  (0.0427)  &  (0.0427) \\
Income (std)  &  0.0348   &  0.0348   &  -0.0467   &  -0.0467  \\
  &  (0.0307)  &  (0.0307)  &  (0.0639)  &  (0.0639) \\
age  &  0.0234***  &  0.0234***  &  0.0200***  &  0.0200*** \\
  &  (0.0020)  &  (0.0020)  &  (0.0050)  &  (0.0050) \\
gender  &  -0.5098***  &  -0.5098***  &  -0.1203   &  -0.1203  \\
  &  (0.0610)  &  (0.0610)  &  (0.1244)  &  (0.1244) \\
N. Obs.  &  1017  &  1017  &  1017  &  1017 \\
R2 (adj)  &  0.7641  &  0.7641  &    &   \\
R2 (pseudo)  &    &    &  0.2843  &  0.2843 \\
BIC  &  2859.2311  &  2859.2311  &  -5968.2760  &  -5968.2760 \\
AIC  &  2824.7588  &  2824.7588  &  1039.5825  &  1039.5825 \\
Std. Error  &  Classical  &  Classical  &  Clustered  &  Clustered \\
\bottomrule
\multicolumn{5}{r}{+ $p<0.1$; * $p<0.05$; ** $p<0.01$; *** $p<0.001$}\\
\end{tabular}}
\end{table}

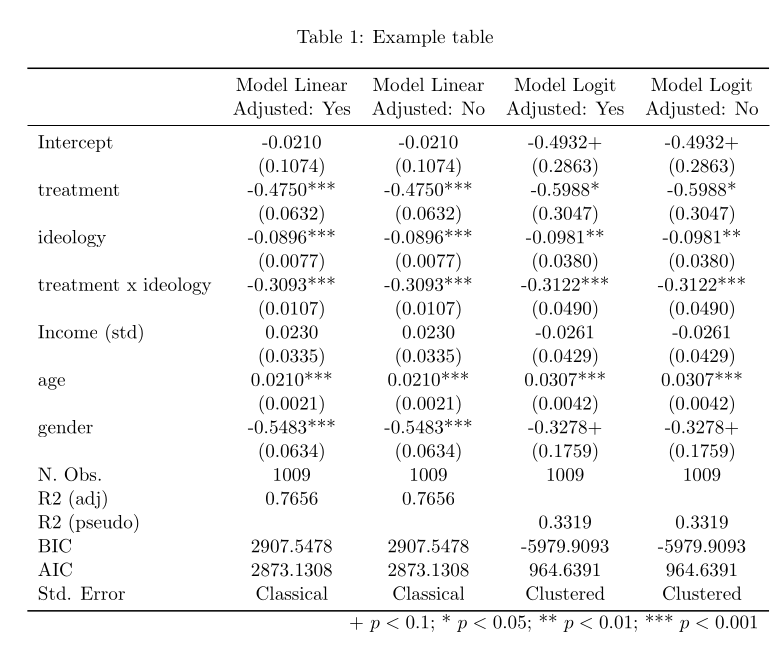

This table in the LaTeX document will look like this:

Bonus

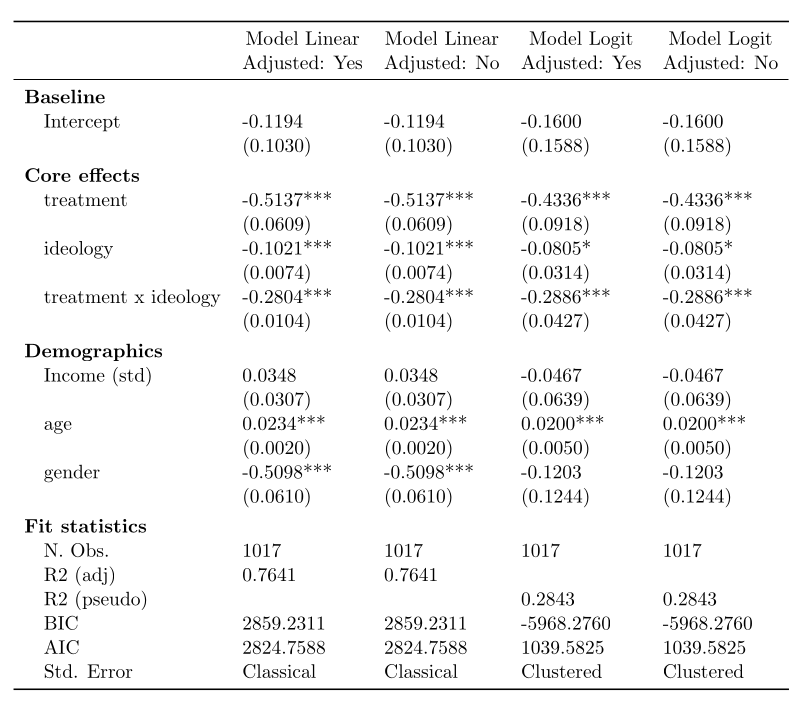

Grouping rows

We can group the rows in the table by post-processing the tibble outcome from the models2tab() function using tidypolars function to_latex(). Something like this:

We need to create a column indicating the row group:

tab_rows_grouped = tab.mutate(groups = np.array(['Baseline']*2 +
                                                ['Core effects']*6 +
                                                ['Demographics']*6 +
                                                ['Fit statistics']*6
                                                )
                              )
tab_rows_grouped.print()
shape: (20, 6)
┌─────────────────────────────────────────────────────────────────────────────────────────────────────┐
                        Model Linear    Model Linear   Model Logit     Model Logit    groups
 str                    Adjusted: Yes   Adjusted: No   Adjusted: Yes   Adjusted: No   str
                        str             str            str             str
╞═════════════════════════════════════════════════════════════════════════════════════════════════════╡
 Intercept              -0.1194         -0.1194        -0.1600         -0.1600        Baseline
                        (0.1030)        (0.1030)       (0.1588)        (0.1588)       Baseline
 treatment              -0.5137***      -0.5137***     -0.4336***      -0.4336***     Core effects
                        (0.0609)        (0.0609)       (0.0918)        (0.0918)       Core effects
 ideology               -0.1021***      -0.1021***     -0.0805*        -0.0805*       Core effects
                        (0.0074)        (0.0074)       (0.0314)        (0.0314)       Core effects
 treatment x ideology   -0.2804***      -0.2804***     -0.2886***      -0.2886***     Core effects
                        (0.0104)        (0.0104)       (0.0427)        (0.0427)       Core effects
 Income (std)           0.0348          0.0348         -0.0467         -0.0467        Demographics
                        (0.0307)        (0.0307)       (0.0639)        (0.0639)       Demographics
 age                    0.0234***       0.0234***      0.0200***       0.0200***      Demographics
                        (0.0020)        (0.0020)       (0.0050)        (0.0050)       Demographics
 gender                 -0.5098***      -0.5098***     -0.1203         -0.1203        Demographics
                        (0.0610)        (0.0610)       (0.1244)        (0.1244)       Demographics
 N. Obs.                1017            1017           1017            1017           Fit statistics
 R2 (adj)               0.7641          0.7641                                        Fit statistics
 R2 (pseudo)                                           0.2843          0.2843         Fit statistics
 BIC                    2859.2311       2859.2311      -5968.2760      -5968.2760     Fit statistics
 AIC                    2824.7588       2824.7588      1039.5825       1039.5825      Fit statistics
 Std. Error             Classical       Classical      Clustered       Clustered      Fit statistics
└─────────────────────────────────────────────────────────────────────────────────────────────────────┘

Then, we apply the to_latex() function:

tabl = tab_rows_grouped.to_latex(group_rows_by='groups')
print(tabl)
\begin{table}[!htb]
\centering
\resizebox{\ifdim\width>\linewidth\linewidth\else\width\fi}{!}{
\begin{tabular}{lllll}
\toprule
  & \makecell{Model Linear\\Adjusted: Yes} & \makecell{Model Linear\\Adjusted: No} & \makecell{Model Logit\\Adjusted: Yes} & \makecell{Model Logit\\Adjusted: No}\\
\midrule
\addlinespace[0.3em]\multicolumn{5}{l}{ \textbf{Baseline} }\\
\hspace{1em}Intercept  &  -0.1194   &  -0.1194   &  -0.1600   &  -0.1600  \\
\hspace{1em}  &  (0.1030)  &  (0.1030)  &  (0.1588)  &  (0.1588) \\
\addlinespace[0.3em]\multicolumn{5}{l}{ \textbf{Core effects} }\\
\hspace{1em}treatment  &  -0.5137***  &  -0.5137***  &  -0.4336***  &  -0.4336*** \\
\hspace{1em}  &  (0.0609)  &  (0.0609)  &  (0.0918)  &  (0.0918) \\
\hspace{1em}ideology  &  -0.1021***  &  -0.1021***  &  -0.0805*  &  -0.0805* \\
\hspace{1em}  &  (0.0074)  &  (0.0074)  &  (0.0314)  &  (0.0314) \\
\hspace{1em}treatment x ideology  &  -0.2804***  &  -0.2804***  &  -0.2886***  &  -0.2886*** \\
\hspace{1em}  &  (0.0104)  &  (0.0104)  &  (0.0427)  &  (0.0427) \\
\addlinespace[0.3em]\multicolumn{5}{l}{ \textbf{Demographics} }\\
\hspace{1em}Income (std)  &  0.0348   &  0.0348   &  -0.0467   &  -0.0467  \\
\hspace{1em}  &  (0.0307)  &  (0.0307)  &  (0.0639)  &  (0.0639) \\
\hspace{1em}age  &  0.0234***  &  0.0234***  &  0.0200***  &  0.0200*** \\
\hspace{1em}  &  (0.0020)  &  (0.0020)  &  (0.0050)  &  (0.0050) \\
\hspace{1em}gender  &  -0.5098***  &  -0.5098***  &  -0.1203   &  -0.1203  \\
\hspace{1em}  &  (0.0610)  &  (0.0610)  &  (0.1244)  &  (0.1244) \\
\addlinespace[0.3em]\multicolumn{5}{l}{ \textbf{Fit statistics} }\\
\hspace{1em}N. Obs.  &  1017  &  1017  &  1017  &  1017 \\
\hspace{1em}R2 (adj)  &  0.7641  &  0.7641  &    &   \\
\hspace{1em}R2 (pseudo)  &    &    &  0.2843  &  0.2843 \\
\hspace{1em}BIC  &  2859.2311  &  2859.2311  &  -5968.2760  &  -5968.2760 \\
\hspace{1em}AIC  &  2824.7588  &  2824.7588  &  1039.5825  &  1039.5825 \\
\hspace{1em}Std. Error  &  Classical  &  Classical  &  Clustered  &  Clustered \\
\bottomrule
\end{tabular}}
\end{table}

Grouping columns

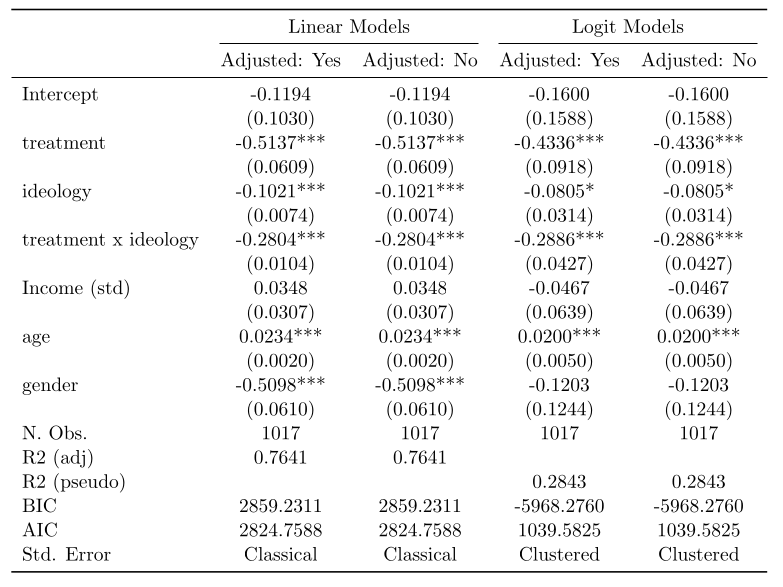

We can also group columns instead, producing something like this:

We need to post-process the tibble outcome from the models2tab() function using tidypolars function to_latex(). The code:

caption = "A regression table"
label = 'tab-regression'
header = [('', ''),
          ('Linear Models', 'Adjusted: Yes'),
          ('Linear Models', 'Adjusted: No'),
          ('Logit Models', 'Adjusted: Yes'),
          ('Logit Models', 'Adjusted: No'),
          ]
tabl = tab.to_latex(caption = caption,
                    label = label,
                    header = header,
                    align = 'lcccc',
                    footnotes = None)
print(tabl)
\begin{table}[!htb]
\caption{A regression table}
\label{tab-regression}
\centering
\resizebox{\ifdim\width>\linewidth\linewidth\else\width\fi}{!}{
\begin{tabular}{lcccc}
\toprule
  &  \multicolumn{2}{c}{Linear Models}  &  \multicolumn{2}{c}{Logit Models} \\
\cmidrule(lr){2-3} \cmidrule(lr){4-5}
  &  Adjusted: Yes  &  Adjusted: No  &  Adjusted: Yes  &  Adjusted: No \\
\midrule
Intercept  &  -0.1194   &  -0.1194   &  -0.1600   &  -0.1600  \\
  &  (0.1030)  &  (0.1030)  &  (0.1588)  &  (0.1588) \\
treatment  &  -0.5137***  &  -0.5137***  &  -0.4336***  &  -0.4336*** \\
  &  (0.0609)  &  (0.0609)  &  (0.0918)  &  (0.0918) \\
ideology  &  -0.1021***  &  -0.1021***  &  -0.0805*  &  -0.0805* \\
  &  (0.0074)  &  (0.0074)  &  (0.0314)  &  (0.0314) \\
treatment x ideology  &  -0.2804***  &  -0.2804***  &  -0.2886***  &  -0.2886*** \\
  &  (0.0104)  &  (0.0104)  &  (0.0427)  &  (0.0427) \\
Income (std)  &  0.0348   &  0.0348   &  -0.0467   &  -0.0467  \\
  &  (0.0307)  &  (0.0307)  &  (0.0639)  &  (0.0639) \\
age  &  0.0234***  &  0.0234***  &  0.0200***  &  0.0200*** \\
  &  (0.0020)  &  (0.0020)  &  (0.0050)  &  (0.0050) \\
gender  &  -0.5098***  &  -0.5098***  &  -0.1203   &  -0.1203  \\
  &  (0.0610)  &  (0.0610)  &  (0.1244)  &  (0.1244) \\
N. Obs.  &  1017  &  1017  &  1017  &  1017 \\
R2 (adj)  &  0.7641  &  0.7641  &    &   \\
R2 (pseudo)  &    &    &  0.2843  &  0.2843 \\
BIC  &  2859.2311  &  2859.2311  &  -5968.2760  &  -5968.2760 \\
AIC  &  2824.7588  &  2824.7588  &  1039.5825  &  1039.5825 \\
Std. Error  &  Classical  &  Classical  &  Clustered  &  Clustered \\
\bottomrule
\end{tabular}}
\end{table}

Plotting coefficients

The tidy format facilitates plotting the model coefficients. One can use the unnest() function. Here is the code:

model = 'Linear'
adjusted = 'Yes'
tab = (res
       .filter(tp.col("model")==model)
       .filter(tp.col("adjusted")==adjusted)
       .select('partisanship', 'summ')
       .unnest('summ')
       #
       .filter(~tp.col("term").str.contains('Intercept'))
       )
tab.print()
shape: (12, 8)
┌─────────────────────────────────────────────────────────────────────────────────────────┐
 partisanship   term                 Coef.   Std.Err.        t   P>|t|   [0.025   0.975]
 str            str                    f64        f64      f64     f64      f64      f64
╞═════════════════════════════════════════════════════════════════════════════════════════╡
 republican     treatment            -0.55       0.07    -8.35    0.00    -0.67    -0.42
 republican     ideology             -0.12       0.01   -14.41    0.00    -0.13    -0.10
 republican     treatment:ideology   -0.29       0.01   -25.66    0.00    -0.31    -0.27
 republican     income               -0.01       0.03    -0.25    0.81    -0.07     0.06
 republican     age                   0.02       0.00     7.81    0.00     0.01     0.02
 republican     gender               -0.44       0.07    -6.76    0.00    -0.57    -0.31
 democrat       treatment            -0.51       0.06    -8.44    0.00    -0.63    -0.39
 democrat       ideology             -0.10       0.01   -13.86    0.00    -0.12    -0.09
 democrat       treatment:ideology   -0.28       0.01   -27.00    0.00    -0.30    -0.26
 democrat       income                0.03       0.03     1.13    0.26    -0.03     0.10
 democrat       age                   0.02       0.00    11.58    0.00     0.02     0.03
 democrat       gender               -0.51       0.06    -8.36    0.00    -0.63    -0.39
└─────────────────────────────────────────────────────────────────────────────────────────┘

Plotting fitted line

The tidy format facilitates plotting the model prediction or fitted values. One can use the unnest() function. Here is the code:

model = 'Linear'
adjusted = 'Yes'
tab = (res
       .filter(tp.col("model")==model)
       .filter(tp.col("adjusted")==adjusted)
       .select('partisanship', "pred")
       .unnest("pred")
       )
tab.print()
shape: (80, 15)
┌───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┐
 partisanship     age   income   gender   ideology   treatment   group   vote_conservative   rate_conservative    mean   mean_se   mean_ci_lower   mean_ci_upper   obs_ci_lower   obs_ci_upper
 str              f64      f64      f64        i64         i64   str                   f64                 f64     f64       f64             f64             f64            f64            f64
╞═══════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════╡
 republican     43.92    -0.04     0.49        -10           0   a                    0.59                0.46    1.81      0.09            1.64            1.98          -0.19           3.82
 republican     43.92    -0.04     0.49         -9           0   a                    0.59                0.46    1.70      0.08            1.54            1.85          -0.31           3.70
 republican     43.92    -0.04     0.49         -8           0   a                    0.59                0.46    1.58      0.07            1.43            1.73          -0.42           3.58
 republican     43.92    -0.04     0.49         -7           0   a                    0.59                0.46    1.46      0.07            1.33            1.60          -0.54           3.46
 republican     43.92    -0.04     0.49         -6           0   a                    0.59                0.46    1.35      0.06            1.22            1.47          -0.66           3.35
 republican     43.92    -0.04     0.49         -5           0   a                    0.59                0.46    1.23      0.06            1.12            1.34          -0.77           3.23
 republican     43.92    -0.04     0.49         -4           0   a                    0.59                0.46    1.11      0.05            1.01            1.22          -0.89           3.11
 republican     43.92    -0.04     0.49         -3           0   a                    0.59                0.46    1.00      0.05            0.90            1.09          -1.00           3.00
 republican     43.92    -0.04     0.49         -2           0   a                    0.59                0.46    0.88      0.05            0.79            0.97          -1.12           2.88
 republican     43.92    -0.04     0.49         -1           0   a                    0.59                0.46    0.76      0.05            0.67            0.85          -1.24           2.76
 republican     43.92    -0.04     0.49          0           0   a                    0.59                0.46    0.65      0.05            0.55            0.74          -1.35           2.65
 republican     43.92    -0.04     0.49          1           0   a                    0.59                0.46    0.53      0.05            0.43            0.62          -1.47           2.53
 republican     43.92    -0.04     0.49          2           0   a                    0.59                0.46    0.41      0.05            0.31            0.51          -1.59           2.41
 republican     43.92    -0.04     0.49          3           0   a                    0.59                0.46    0.30      0.06            0.19            0.40          -1.71           2.30
 republican     43.92    -0.04     0.49          4           0   a                    0.59                0.46    0.18      0.06            0.06            0.30          -1.82           2.18
 republican     43.92    -0.04     0.49          5           0   a                    0.59                0.46    0.06      0.07           -0.07            0.19          -1.94           2.06
 republican     43.92    -0.04     0.49          6           0   a                    0.59                0.46   -0.05      0.07           -0.20            0.09          -2.06           1.95
 republican     43.92    -0.04     0.49          7           0   a                    0.59                0.46   -0.17      0.08           -0.32           -0.02          -2.17           1.83
 republican     43.92    -0.04     0.49          8           0   a                    0.59                0.46   -0.29      0.08           -0.45           -0.12          -2.29           1.72
 republican     43.92    -0.04     0.49          9           0   a                    0.59                0.46   -0.41      0.09           -0.59           -0.23          -2.41           1.60
 republican     43.92    -0.04     0.49        -10           1   a                    0.59                0.46    4.15      0.09            3.97            4.32           2.14           6.15
 republican     43.92    -0.04     0.49         -9           1   a                    0.59                0.46    3.74      0.08            3.58            3.90           1.74           5.75
 republican     43.92    -0.04     0.49         -8           1   a                    0.59                0.46    3.34      0.08            3.19            3.49           1.34           5.34
 republican     43.92    -0.04     0.49         -7           1   a                    0.59                0.46    2.93      0.07            2.80            3.07           0.93           4.94
 republican     43.92    -0.04     0.49         -6           1   a                    0.59                0.46    2.53      0.06            2.40            2.65           0.53           4.53
 republican     43.92    -0.04     0.49         -5           1   a                    0.59                0.46    2.12      0.06            2.01            2.24           0.12           4.12
 republican     43.92    -0.04     0.49         -4           1   a                    0.59                0.46    1.72      0.05            1.61            1.83          -0.28           3.72
 republican     43.92    -0.04     0.49         -3           1   a                    0.59                0.46    1.31      0.05            1.22            1.41          -0.69           3.31
 republican     43.92    -0.04     0.49         -2           1   a                    0.59                0.46    0.91      0.05            0.82            1.00          -1.09           2.91
 republican     43.92    -0.04     0.49         -1           1   a                    0.59                0.46    0.50      0.05            0.41            0.60          -1.49           2.50
 republican     43.92    -0.04     0.49          0           1   a                    0.59                0.46    0.10      0.05            0.01            0.19          -1.90           2.10
 republican     43.92    -0.04     0.49          1           1   a                    0.59                0.46   -0.30      0.05           -0.40           -0.21          -2.30           1.69
 republican     43.92    -0.04     0.49          2           1   a                    0.59                0.46   -0.71      0.05           -0.81           -0.61          -2.71           1.29
 republican     43.92    -0.04     0.49          3           1   a                    0.59                0.46   -1.11      0.05           -1.22           -1.01          -3.11           0.89
 republican     43.92    -0.04     0.49          4           1   a                    0.59                0.46   -1.52      0.06           -1.63           -1.41          -3.52           0.48
 republican     43.92    -0.04     0.49          5           1   a                    0.59                0.46   -1.92      0.06           -2.04           -1.80          -3.92           0.08
 republican     43.92    -0.04     0.49          6           1   a                    0.59                0.46   -2.33      0.07           -2.46           -2.20          -4.33          -0.33
 republican     43.92    -0.04     0.49          7           1   a                    0.59                0.46   -2.73      0.07           -2.88           -2.59          -4.74          -0.73
 republican     43.92    -0.04     0.49          8           1   a                    0.59                0.46   -3.14      0.08           -3.29           -2.98          -5.14          -1.14
 republican     43.92    -0.04     0.49          9           1   a                    0.59                0.46   -3.54      0.08           -3.71           -3.38          -5.55          -1.54
 democrat       43.49     0.00     0.48        -10           0   a                    0.60                0.50    1.67      0.09            1.50            1.84          -0.23           3.58
 democrat       43.49     0.00     0.48         -9           0   a                    0.60                0.50    1.57      0.08            1.41            1.73          -0.33           3.47
 democrat       43.49     0.00     0.48         -8           0   a                    0.60                0.50    1.47      0.07            1.32            1.61          -0.44           3.37
 democrat       43.49     0.00     0.48         -7           0   a                    0.60                0.50    1.37      0.07            1.23            1.50          -0.54           3.27
 democrat       43.49     0.00     0.48         -6           0   a                    0.60                0.50    1.26      0.06            1.14            1.39          -0.64           3.16
 democrat       43.49     0.00     0.48         -5           0   a                    0.60                0.50    1.16      0.06            1.05            1.27          -0.74           3.06
 democrat       43.49     0.00     0.48         -4           0   a                    0.60                0.50    1.06      0.05            0.96            1.16          -0.84           2.96
 democrat       43.49     0.00     0.48         -3           0   a                    0.60                0.50    0.96      0.05            0.86            1.05          -0.94           2.86
 democrat       43.49     0.00     0.48         -2           0   a                    0.60                0.50    0.85      0.05            0.77            0.94          -1.04           2.75
 democrat       43.49     0.00     0.48         -1           0   a                    0.60                0.50    0.75      0.04            0.67            0.84          -1.15           2.65
 democrat       43.49     0.00     0.48          0           0   a                    0.60                0.50    0.65      0.04            0.57            0.74          -1.25           2.55
 democrat       43.49     0.00     0.48          1           0   a                    0.60                0.50    0.55      0.04            0.46            0.63          -1.35           2.45
 democrat       43.49     0.00     0.48          2           0   a                    0.60                0.50    0.45      0.05            0.36            0.54          -1.45           2.35
 democrat       43.49     0.00     0.48          3           0   a                    0.60                0.50    0.34      0.05            0.25            0.44          -1.56           2.24
 democrat       43.49     0.00     0.48          4           0   a                    0.60                0.50    0.24      0.05            0.14            0.34          -1.66           2.14
 democrat       43.49     0.00     0.48          5           0   a                    0.60                0.50    0.14      0.06            0.03            0.25          -1.76           2.04
 democrat       43.49     0.00     0.48          6           0   a                    0.60                0.50    0.04      0.06           -0.08            0.16          -1.86           1.94
 democrat       43.49     0.00     0.48          7           0   a                    0.60                0.50   -0.06      0.07           -0.20            0.07          -1.97           1.84
 democrat       43.49     0.00     0.48          8           0   a                    0.60                0.50   -0.17      0.07           -0.31           -0.02          -2.07           1.74
 democrat       43.49     0.00     0.48          9           0   a                    0.60                0.50   -0.27      0.08           -0.42           -0.11          -2.17           1.64
 democrat       43.49     0.00     0.48        -10           1   a                    0.60                0.50    3.96      0.08            3.80            4.12           2.06           5.87
 democrat       43.49     0.00     0.48         -9           1   a                    0.60                0.50    3.58      0.07            3.43            3.73           1.68           5.48
 democrat       43.49     0.00     0.48         -8           1   a                    0.60                0.50    3.20      0.07            3.06            3.33           1.29           5.10
 democrat       43.49     0.00     0.48         -7           1   a                    0.60                0.50    2.81      0.06            2.69            2.94           0.91           4.72
 democrat       43.49     0.00     0.48         -6           1   a                    0.60                0.50    2.43      0.06            2.32            2.55           0.53           4.33
 democrat       43.49     0.00     0.48         -5           1   a                    0.60                0.50    2.05      0.05            1.94            2.15           0.15           3.95
 democrat       43.49     0.00     0.48         -4           1   a                    0.60                0.50    1.67      0.05            1.57            1.76          -0.23           3.57
 democrat       43.49     0.00     0.48         -3           1   a                    0.60                0.50    1.28      0.05            1.19            1.38          -0.62           3.18
 democrat       43.49     0.00     0.48         -2           1   a                    0.60                0.50    0.90      0.04            0.82            0.99          -1.00           2.80
 democrat       43.49     0.00     0.48         -1           1   a                    0.60                0.50    0.52      0.04            0.44            0.60          -1.38           2.42
 democrat       43.49     0.00     0.48          0           1   a                    0.60                0.50    0.14      0.04            0.05            0.22          -1.76           2.04
 democrat       43.49     0.00     0.48          1           1   a                    0.60                0.50   -0.25      0.04           -0.33           -0.16          -2.15           1.65
 democrat       43.49     0.00     0.48          2           1   a                    0.60                0.50   -0.63      0.05           -0.72           -0.54          -2.53           1.27
 democrat       43.49     0.00     0.48          3           1   a                    0.60                0.50   -1.01      0.05           -1.11           -0.91          -2.91           0.89
 democrat       43.49     0.00     0.48          4           1   a                    0.60                0.50   -1.39      0.05           -1.50           -1.29          -3.29           0.51
 democrat       43.49     0.00     0.48          5           1   a                    0.60                0.50   -1.78      0.06           -1.89           -1.66          -3.68           0.13
 democrat       43.49     0.00     0.48          6           1   a                    0.60                0.50   -2.16      0.06           -2.28           -2.03          -4.06          -0.26
 democrat       43.49     0.00     0.48          7           1   a                    0.60                0.50   -2.54      0.07           -2.68           -2.40          -4.44          -0.64
 democrat       43.49     0.00     0.48          8           1   a                    0.60                0.50   -2.92      0.08           -3.07           -2.77          -4.83          -1.02
 democrat       43.49     0.00     0.48          9           1   a                    0.60                0.50   -3.31      0.08           -3.47           -3.14          -5.21          -1.40
└───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┘

References

  • Fournier, P., Soroka, S., & Nir, L. (2020). Negativity Biases and Political Ideology: A Comparative Test across 17 Countries. American Political Science Review, 114(3), 775–791. http://dx.doi.org/10.1017/S0003055420000131
